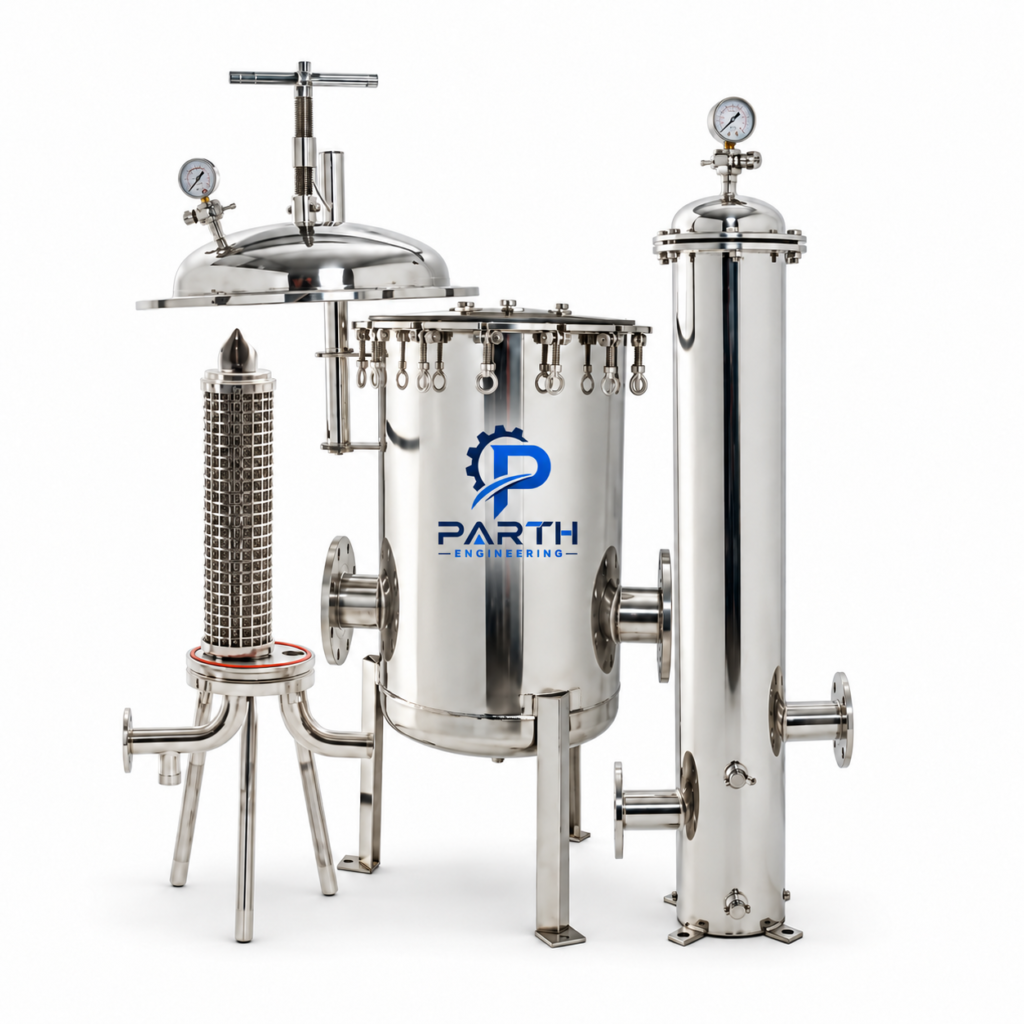

Reliable Cartridge Filter Housing for Industrial Process Filtration
Parth Engineering offers Cartridge Filter Housing solutions designed for industrial and process filtration applications where reliable filtration, convenient filter replacement and controlled liquid or process media flow are required. Cartridge Filter Housings are an important part of a cartridge-based filtration system, providing a suitable enclosure in which filter cartridges can be installed and operated.
A properly selected filter housing allows the filtration cartridge to remain securely positioned while process media passes through the selected filtration element. The housing configuration, material, size and connection arrangement can be selected according to the filtration requirement and operating conditions.
Parth Engineering focuses on providing industrial filtration products with a quality-oriented approach, experienced professionals, suitable manufacturing technology and customer-focused service. Our Cartridge Filter Housing solutions can be considered for different industrial applications according to the required filtration process, cartridge configuration and operating conditions.
What Is a Cartridge Filter Housing?
A Cartridge Filter Housing is a pressure vessel or enclosure designed to accommodate one or more replaceable filter cartridges. It forms an important part of a cartridge filtration system and provides the required flow path for the process media.
During operation, the unfiltered process media enters the housing and passes through the installed filter cartridge. Depending on the cartridge design, unwanted particles or contaminants are retained by the filtration media while the filtered media exits through the designated outlet.
The housing is designed to hold the cartridge securely and provide a suitable sealing arrangement between the filtration element and housing. Once the filter cartridge reaches its required replacement condition, the housing can be opened according to the applicable maintenance procedure and the cartridge can be replaced.
The correct Cartridge Filter Housing should be selected according to cartridge dimensions, number of cartridges, process media, operating pressure, temperature, flow requirements and connection arrangement.
Cartridge Filter Housing Design
A Cartridge Filter Housing generally consists of a housing body, cover, cartridge support arrangement, sealing components and inlet and outlet connections. Depending on the design, the housing can accommodate one or multiple filter cartridges.
The housing provides a controlled internal flow path that directs the process media through the filtration cartridges. The cartridge support arrangement helps maintain the position of the filter element during operation.
The housing construction and material should be selected according to the process media and operating conditions. Suitable material selection is particularly important when the housing is exposed to corrosive, chemically active or temperature-sensitive process media.
The overall design should also allow suitable access for cartridge installation, replacement and routine maintenance.
Key Features of Cartridge Filter Housing
Parth Engineering Cartridge Filter Housing solutions are designed around practical industrial filtration requirements.
Designed to accommodate replaceable filter cartridges for suitable process filtration applications.
Provides a defined flow arrangement through the installed filtration element.
The housing can be used with suitable replaceable cartridges according to the filtration requirement.
Designed for suitable industrial and process filtration applications.
Housing configuration can be selected according to the required cartridge type and filtration arrangement.
Inlet and outlet connections can be selected according to the required piping configuration.
Suitable housing designs provide access for filter cartridge replacement and servicing.
Housing specifications can be selected according to process conditions and filtration requirements.
Types of Cartridge Filter Housing
Cartridge Filter Housings can be configured according to the required filtration capacity and cartridge arrangement.
Single Cartridge Filter Housings are suitable for applications where one filter cartridge is sufficient for the required filtration process. They can provide a compact filtration arrangement for suitable industrial applications and can be considered where filtration capacity and installation requirements are relatively straightforward.
Multi-Cartridge Filter Housings are designed to accommodate multiple cartridges within the same housing. They can be considered for applications requiring higher filtration capacity or multiple filter cartridges operating together. The number and configuration of cartridges should be selected according to the required flow and process conditions.
Industrial Cartridge Filter Housings can be designed for suitable process applications where a robust filtration enclosure and replaceable filter cartridge arrangement are required. The appropriate housing construction and material should be selected according to the process media, pressure, temperature and application conditions.
Cartridge Compatibility
One of the important considerations when selecting a Cartridge Filter Housing is compatibility between the housing and filter cartridge.
The cartridge dimensions, length, diameter, end connection and sealing arrangement should be compatible with the selected housing. Using a suitable cartridge-housing combination helps establish the required filtration flow path.
Parth Engineering offers filtration products including different cartridge types, allowing customers to select suitable filtration consumables according to their process requirements.
The housing should therefore be selected together with the required cartridge configuration wherever possible.
Applications of Cartridge Filter Housing
Cartridge Filter Housings can be used in various industrial and process filtration applications where replaceable filter cartridges are required.
Industries Served
Cartridge Filter Housing solutions can support filtration requirements across various industrial sectors.
Filter housings and filtration consumables for efficient and dependable process filtration.
Filter bags and liquid filtration products for industrial processing applications.
Gas filtration products for effective filtration and process control.
Butterfly valves for reliable industrial flow regulation and isolation.
Delrin rods and sheets for industrial fabrication and engineering requirements.
Product configurations and solutions based on specific industrial application requirements.
Advantages of Cartridge Filter Housing
A Cartridge Filter Housing provides a practical and organized arrangement for installing replaceable filter cartridges within an industrial filtration system.
One of the main advantages is the ability to replace the filtration cartridge without replacing the complete housing. This can provide a practical maintenance arrangement for suitable filtration systems.
The housing also protects and supports the installed filter cartridge while directing the process media through the filtration element.
Depending on the configuration, a housing can accommodate different cartridge arrangements and filtration capacities. This allows the filtration system to be designed according to the process flow and application requirements.
The housing can also be selected in suitable materials and connection configurations according to the process environment.
How Cartridge Filter Housing Works
The operating principle of a Cartridge Filter Housing is based on directing the process media through a suitable filter cartridge.
The unfiltered process media enters the housing through the designated inlet. Inside the housing, the media is directed through the installed filter cartridge. The filtration media retains unwanted particles or contaminants according to the characteristics of the selected cartridge.
The filtered process media then exits through the housing outlet and continues to the next stage of the process.
When the cartridge reaches its required replacement condition, the filtration system can be taken through the applicable maintenance procedure. The housing can then be opened and the used cartridge replaced with a suitable new filtration element.
How Cartridge Filter Housing Works
The operating principle of a Cartridge Filter Housing is based on directing the process media through a suitable filter cartridge.
The unfiltered process media enters the housing through the designated inlet. Inside the housing, the media is directed through the installed filter cartridge. The filtration media retains unwanted particles or contaminants according to the characteristics of the selected cartridge.
The filtered process media then exits through the housing outlet and continues to the next stage of the process.
When the cartridge reaches its required replacement condition, the filtration system can be taken through the applicable maintenance procedure. The housing can then be opened and the used cartridge replaced with a suitable new filtration element.
Cartridge Compatibility
One of the important considerations when selecting a Cartridge Filter Housing is compatibility between the housing and filter cartridge.
The cartridge dimensions, length, diameter, end connection and sealing arrangement should be compatible with the selected housing. Using a suitable cartridge-housing combination helps establish the required filtration flow path.
Parth Engineering offers filtration products including different cartridge types, allowing customers to select suitable filtration consumables according to their process requirements.
The housing should therefore be selected together with the required cartridge configuration wherever possible.
Why Choose Parth Engineering Cartridge Filter Housing?
Parth Engineering has been serving industrial requirements since 2007 and is engaged in the manufacturing, supply and servicing of industrial valves and filtration products.
Our approach focuses on quality products, experienced professionals, suitable manufacturing technology and customer requirements. We source quality raw materials from reliable industry suppliers and follow defined quality checks during the manufacturing process.
Our experienced professionals support manufacturing and product-related activities, while our infrastructure supports procurement, production, quality control and sales operations.
We understand that filtration systems can have different requirements depending on the process and application. Therefore, customers can share details such as flow rate, process media, cartridge type, pressure, temperature and connection requirements with our team.
Quality-Focused Manufacturing
Quality is an important part of Parth Engineering’s manufacturing approach.
We focus on quality raw materials sourced from reliable industry suppliers and use skilled professionals and suitable manufacturing technology during production. Products are checked against defined quality parameters to help maintain consistent quality.
Our manufacturing infrastructure and experienced team support our objective of providing industrial filtration and valve solutions according to customer requirements.
We also focus on professional service, customer satisfaction and timely support throughout the product enquiry and supply process.
How to Select the Right Cartridge Filter Housing
Selecting the correct Cartridge Filter Housing requires consideration of the complete filtration system.
Important factors include:
- Required flow rate
- Process media
- Required filtration level
- Filter cartridge type
- Cartridge dimensions
- Number of cartridges
- Operating pressure
- Operating temperature
- Housing material
- Seal material
- Inlet connection
- Outlet connection
Request a Quote for Cartridge Filter Housing
Looking for a Cartridge Filter Housing for your industrial or process filtration application? Share your required flow rate, process media, cartridge type, cartridge size, number of cartridges, operating pressure, operating temperature and connection requirements with Parth Engineering.
Our team can help you explore a suitable Cartridge Filter Housing configuration based on your specific industrial filtration requirements.
